- 分辨率:1024 x 768
- 像元尺寸:4.65 x 4.65μm
- 传感器:3 x 1/3”
- 时钟:33.75MHz
- 帧频:30fps
- 数据格式:3 x 8bit、3 x 10bit RGB彩色GigE Vision输出
型号:CM-140MCL/CB-140MCL
- 分辨率:1380 x 1040
- 像元尺寸:4.65 x 4.65μm
- 传感器:1/2”
- 时钟:65MHz
- 帧频:31fps
数据格式:8、10 bit 黑白/Bayer彩色 mini Camera Link 输出
型号:CM-200MCL/CB-200MCL
- 分辨率:1620 x 1236
- 像元尺寸:4.4 x 4.4μm
- 传感器:1 / 1.8”
- 时钟:65MHz
- 帧频:25fps
- 数据格式:8 、10 bit 黑白/Bayer彩色 mini Camera Link 输出
型号: RM-2030GE,RMC-2030GE/RM-2040GE,RMC-2040GE
- 分辨率:1920 x 1080 / 1600 x 1200
- 像元尺寸:7.4 x 7.4μm
- 传感器:1”
- 时钟:40.00MHz
- 帧频:32fps / 34fps
数据格式:8、10、12 bit 黑白和Bayer彩色GigE Vision输出
型号:RM-1405GE/RMC-1405GE
- 分辨率:1392 x 1040
- 像元尺寸:4.65 x 4.65μm
- 传感器:1/2”
- 时钟:50.00MHz
- 帧频:30fps
- 数据格式:8、10 bit黑白/ Bayer彩色 GigE 输出
型号:RM-2030CL,RMC-2030CL/RM-2040CL,RMC-2040CL
- 分辨率:1920 x 1080 / 1600 x 1200
- 像元尺寸:7.4 x 7.4μm
- 传感器:1”
- 时钟:40.00MHz
- 帧频:32fps / 34fps
- 数据格式:8、10、12 bit 黑白和Bayer彩色 base Camera link输出
型号:CV-A11
- 分辨率:659 x 494
- 像元尺寸:7.4 x 7.4μm
- 传感器:1/3”
- 时钟:40.49MHz
- 帧频:30fps
数据格式:10 bit Bayer彩色 Camera Link 输出,8bit LVDS 输出
型号:CV-A10GE/CV-A70 GE
- 分辨率:782 x 582
- 像元尺寸:8.37 x 8.37μm
- 传感器:1/2”
- 时钟:36.15MHz
- 帧频:60fps
- 数据格式:8、10 bit 黑白/Bayer彩色 GigE Vision 输出
2.NED
CLISBee系列
具有CMOS特有的最新功能,实现了低噪音高感度。
智能机能搭载,全像素补正,4个分区数据的提取等功能。可减轻图像采集卡侧的负荷。
特 点
- 高速读取(240MHz)高辨率(8192像素)
- 芯片 A/D变换(10 bit)搭载
- 通过外部软件很容易对阀门。位移。视频输出(8/10bit)进行设置变更
- 符合Camera Link输出标准,容易与各种图像采集卡兼容
- 工作电源单一为DC12,15V
具有像素间不规则的阴影补正功能
用途
- 用于透过型基板检查。基板检查
- 高速移动物体的外观检查
- FPD相关的外观检查
- 玻璃。薄板状对象的外观检查
- 基板外观检查
- ITS相关的应用
作为室外监视摄像头的应用
SU系列
特 点
以40MHz的数据频率对连续图像进行高速读取。
外部接口采用Camera Link标准,容易与各种
图像采集卡兼容
通过图像采集卡传送命令很容易对感度和位移进行设置或变更
用 途
玻璃基板检查。胶片检查。基板检查等微小缺陷的検出
高速移動物体的尺寸测定
SUI系列
特 点
输出符合Camera Link标准,容易与各种图像采集卡兼容。
通过图像采集卡传送命令容易对感度和位移进行设置变更。
通过全像素位补正功能,对位间的不均一及阴影补正可随时进行处理。
通过数据切出提取功能、在保持8位精度的前提下、可将必要范围的数据切出提取。
用 途
玻璃基板检查。胶片检查。基板检查等微小缺陷检出
高速移动物体的尺寸测定
浓淡微小变化的缺陷检出
3.Sony
型号:

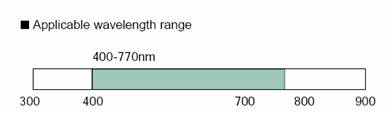

XC-ES50/ES50CE
XC-ES30/ES30CE
性能指标:
型号:

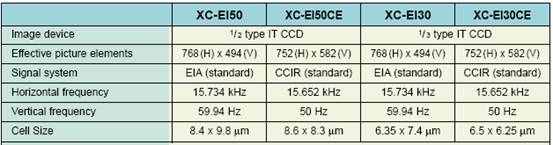

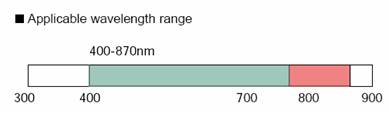

XC-EI50/EI50CE
XC-EI30/EI30CE
型号:

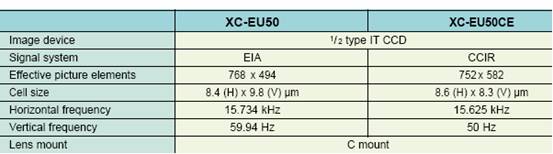

XC-EU50/EU50CE
型号:
XC-HR50
性能指标:
. 1/3 type progressive scan CCD with square pixels
. VGA resolution (648 x 494 pixels) image capturing at a speed of 60 full frames/sec.
. High-rate scanning of up to 240 partial frames/sec. (effective line: 100 lines) (at restart/reset ON,binning OFF)
. Partial Scan controlled by VD pulse length
. Minimum illumination: 1.0 lux at F1.4
. High S/N ratio: 58 dB
. Electronic shutter: 1/100 to 1/30,000 sec
型号:
XC-HR70
性能指标:
. 1/3 type progressive scan CCD with square pixels
. XGA resolution (1,024 x 768 pixels) image capturing at a speed of 29 full frames/sec.
. High-rate scanning of up to 120 partial frames/sec. (effective line: 152 lines) (at restart/reset ON,binning OFF)
. High Resolution: 800 TV lines
. Partial Scan controlled by VD pulse length
. Minimum illumination: 1.0 lux at F1.8
. High S/N ratio: 56 dB
. Electronic shutter: 1/100 to 1/20,000 sec.
型号:
XC-HR57
性能指标:
. 1/2 type progressive scan CCD with square pixels
. VGA resolution (648 x 494 pixels) image capturing at a speed of 60 full frames/sec.
. High rate scanning of up to 240 binned frames/sec.(effective line: 100 lines) (at restart/reset ON, binning OFF)
. Partial scan controlled by VD pulse length
. Minimum illumination: 1.0 lux at F1.4
. High S/N ratio: 58 dB
. Electronic shutter: 1/100 to 1/30,000 sec.
型号:
XC-HR58
性能指标:
. 1/2 type progressive scan CCD with square pixels
. High SVGA resolution (767 x 580 pixels) image capturing at a speed of 50 full frames/sec.
. High-rate scanning of up to 200 binned frames/sec. (effective line: 90 lines) (at restart/reset ON,binning OFF)
. Partial scan controlled by VD pulse length
. Minimum illumination: 1.0 lux at F1.4
. High S/N ratio: 56dB
. Electronic shutter: 1/100 to 1/30,000 sec.
型号:
XC-ST50/ST50CE
XC-ST30/ST30CE
性能指标:
XC-ST50
Image device 1/2 type IT CCD
Effective picture elements 768(H) x 494(V)
Signal system EIA standard
Lens mount C mount
XC-ST30
Image device 1/3 type IT CCD
Effective picture elements 768(H) x 494(V)
Signal system EIA standard
Lens mount C mount
XC-ST50CE
Image device 1/2 type IT CCD
Effective picture elements 752(H) x 582(V)
Signal system CCIR standard
Lens mount C mount
XC-ST30CE
Image device 1/3 type IT CCD
Effective picture elements 752(H) x 582(V)
Signal system CCIR standard
Lens mount C mount
型号:
DFW-710 DFW-910
性能指标:SXGA (YUV 4:2:2): 6 images
。High resolution with progressive scan
square pixel CCD
。 DFW-SX910 : SXGA, 1/2 type IT CCD,
1,280 (H) x 960 (V)
。 DFW-X710 : XGA, 1/3 type IT CCD,
1,024 (H) x 768 (V)
。 IIDC 1394-based Digital Camera
Specification Version 1.30 compliant
(400 Mbps)
。Selectable frame rate
。 DFW-SX910: 7.5/3.75/1.875 fps
。DFW-X710: 15/7.5/3.75/1.875 fps
。Built-in frame memory for storage of images
。XGA (YUV 4:2:2): 10 images
。SXGA (YUV 4:2:2): 6 images
。External trigger input and exposure
output functions (4-pin)
。Fast hardware or software asynchronous
trigger
。Trigger at full frame rate
